Let us help you measure data
CrossWIM Statistics will provide basic data about current traffic, precise traffic classification and approximate vehicle weighing. It is suitable for monitoring road congestion and for road traffic statistics.
Accuracy ±20%
Statistical data
Vehicle classification
- Weighing with the accuracy typically ±20%
- Indicative measurement of speed, number of axles, length of the vehicle, wheelbase and axle load
- Possibility of customizable parameters for monitoring
- Two induction loops per one lane
- Two rows of PIEZO sensors per one lane
- Coverage up to 12 lanes
CROSSWIM Software

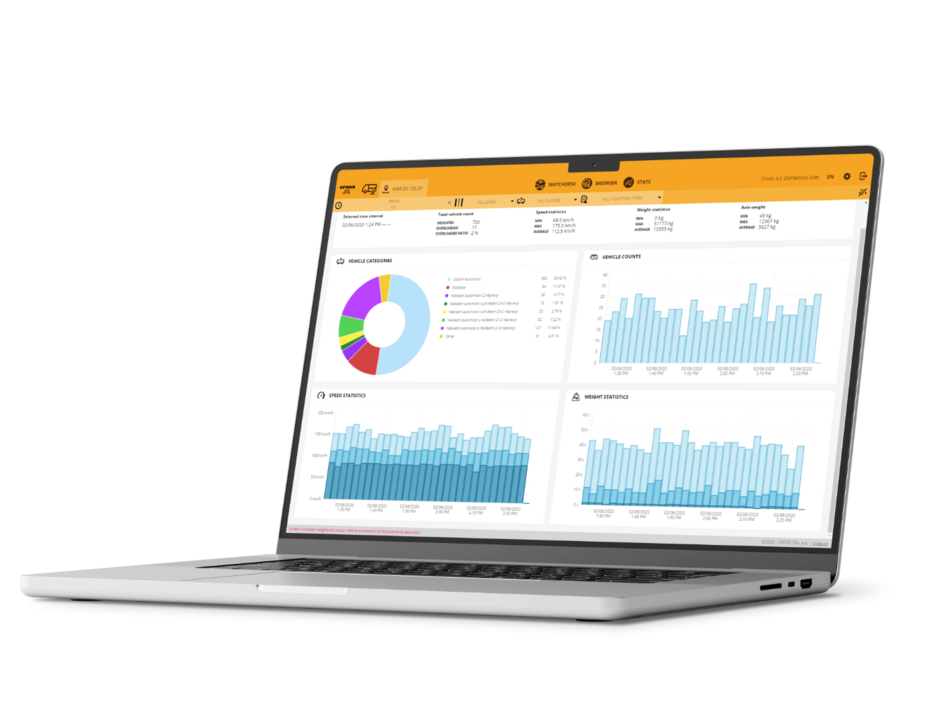

CrossWIM comes with a web application, where you can find reports, statistics and graphics. These can be exported to CSV or PDF. When online, it is possible to view vehicle visualisation, number of axles, wheel weight or wheel speed. You can also identify overloaded vehicles in real-time.
Specifications
- Statistics of travel flow
- User defined vehicle classification categories
- Vehicle search according to different parameters
- API for data integration
- Real-time license plate recognition
- Complex solution
CROSSWIM Control Unit
The control unit was developed with an emphasis on accuracy, reliability and simplicity. It is suitable for single lane installations as well as for multi-lane roads with heavy traffic.
Specifications
- Compatible with various WIM sensors and third-party components
- Fully adaptable to different requirements and traffic conditions
- Possibility to define own categories according to specific needs
- Weighing in up to 12 lanes
Standard CROSSWIM Accessories
Need more detailed data? Make use of the system's accessories.
Accessories
- License plate recognition: it recognizes license plates in real-time.
- Vehicle size measurement sensor: measuring of vehicle's height, width and length. The sensor is usable for accurate speed detection and vehicle classification as well.
- Overview cameras: they provide snapshots and real-time video visualisation.
